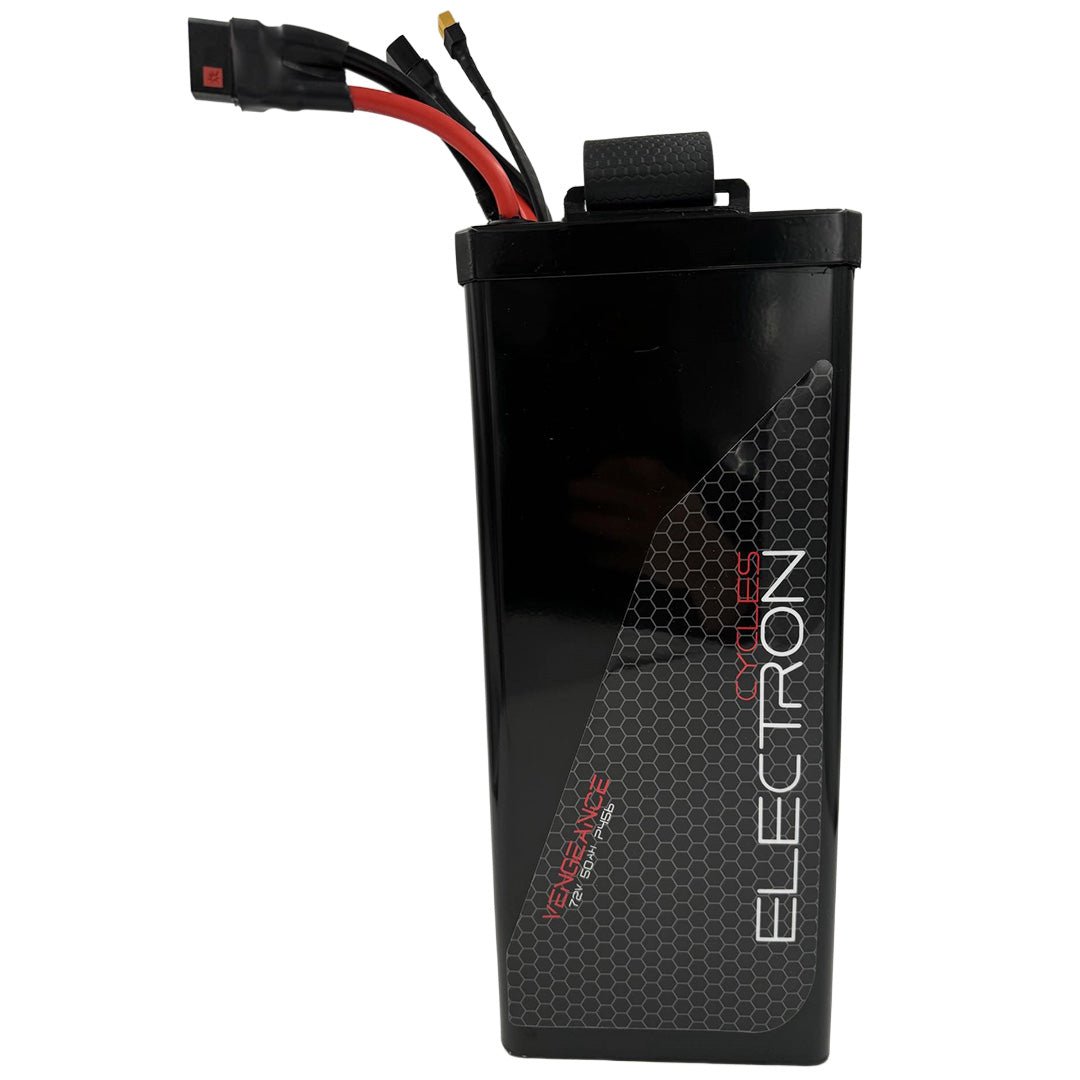

Electron Cycles Talaria Battery 72v 20s 3600Wh 50Ah Vengeance V2 40Kw + Charger

Talaria Battery 72v 20s 3600Wh 50Ah Vengeance V2 40Kw
ASI, EBMX, VTB, Torp, KO & Nucular Controller Compatible
Malevolently Powerful
Extreme Power Long Range 3600Wh21700 Cylindrical CellsTough Protective 316 Stainless Steel CaseFully Protected 250A/550A BMSParallel Discharge QS8 ConnectorsFree High Power Loom
Power: Extreme (40Kw)Range: Very High (3600 Kwh 240% Over OEM)Height: Tall (375mm – needs 3mm spacers provided or seat lift)
Battery Activation Required On Delivery
On delivery, please contact Electron Cycles for activation of your battery. This will also be regarded as confirmation that your battery has been received.
The Vengeance V2 – Malevolently Powerful
Talaria 72v 20s Battery 3600Wh 50Ah Vengeance V2 40Kw. This is the big power daddy of the Dominator Battery. Smaller (range wise only) but able to pump out EXTREME power. We wanted to make a slightly more cost effective battery with almost identical performance with only a small sacrifice to range, but a huge price drop of around £500 GBP.
Cells
There are 220 cells in this battery and all have internal resistance. The more resistance, the more heat they produce, until they start to damage. So with this low resistance, they are able to supply enormous amounts of power without over heating.
Power
This is a Talaria Battery 72v 20s 3600Wh 50Ah Vengeance V2 40Kw power as limited by the 550A (peak/burst for 10 seconds) by the Ant 550 BMS.  We have spent several months testing and evaluating the cell we are using and so confident we are extending our cell warranty to 18 months for this battery.
Exoskeleton / Casing
We have upgraded the casing to marine grade 316 stainless steel, so absolutely no rust issues here! Super tough and powder coated inside and out.
Connectors
For the main battery to controller connector we use the same type of plug as used by Talaria, but we use two sets to share “parallel” the power. This reduces heat, transfers load more efficiently and keeps the connectors from overheating.
One direct set of discharge cables goes to the controller via a high capacity QS8 connector using very large 6 AWG cables. This reduces internal resistance and heat build up. A separate second set of discharge cables using the original 8 AWG cable via a Talaria OEM plug connects to the OEM loom via the circuit breaker.
Domestic Electrics
This means all your bike accessories are still powered. Some believe that not using the circuit breaker direct to the controller removes the safety of the circuit breaker. However, all our batteries have a full working BMS. Any power shorts or irregular current and the BMS shuts down.  This is much more sensitive and accurate than a mechanical breaker (you may note that the Sur Ron Ultra Bee does not use a circuit breaker and relies on the BMS alone).
Fitting
The battery uses two sets of discharge cables. One to fit the original bikes connector (for Sur Ron we supply an adapter so it can also fit a Talaria too). The second goes to an additional cable that we provide that is fixed direct to the controller. This enables the power to be fed “In Parallel” increasing the electrical flow, reducing resistance and reducing harmful heat. It shares the power delivery and takes the strain away from the original loom. These must be connected in a specific order (simple instructions supplied).
For those using a Torp Controller, Torp do not like direct power to the controller via your second cable.  You can either not use the additional power cable we supply (we do not like to remove these as often buyers transfer batteries to another bike) or, if you are worried about your Torp warranty, you can request one of our 2 into 1 convertors in the checkout notes.  Details of the adapter can be found here:https://electroncycles.com/product/two-into-one-converter-qs8-supra-d6-talaria-oem-any-combination-available/
Battery Compartment Lids or Lifting Kits
Because of the extra battery height (375mm) minor modification will needed to your bike.
There are several options:
#1 Fit an aftermarket battery compartment lid – there are several on the market.
#2 Remove the battery plastic base tray in the bike (simply remove the 5 small allen key bolts from the top looking down) and fit our 5mm spacer between the metal battery lid catch and the lid (spacers provided)
#3 Seat Lift Kit option: https://www.electroncycles.co.uk/product/talaria-mx-seat-lift-kit-black-full-e-charged/
Specification Talaria Battery
Weight 19.2KG
Cells 21700 (220).
BMS set at 550 Amps Peak.  Full battery protection including over discharge (shorts) over heating etc.
Each cell with additional individual wrapping for added protection.
Additional layers of fibre board, Kapton tape, heat shrink.
Stainless steel 316 grade sealed casing/exoskeleton with internal/external powder coated to give maximum protection and insulation.
Pure copper sheet connections.
Bluetooth BMS giving individual series condition with balanced charging (We do not recommend altering our settings as may invalidate your warranty).
An integrated cord handle for lowering the battery in and out.
Charging port via an XT60 connector.
Height 375mm to top of lid not including handles
Cell Specification
Size: 21700Chemistry: INRNominal Capacity: 4500mAhNominal Voltage: 3.6VDischarge: 36A Continuous per cell Max 45APositive: Flat/Button Top/Tabs (please select)Rechargeable: YesDimensions: 21.1mm x 70.4mm
Connecting to Bike
When connecting the battery to the bike and to avoid a spark, turn the red trip switch on the bike to off. Connect the older original power cable and then turn the red trip to on. Then connect the new power leads. Removing the battery has no special order.
Battery Charging
First time charging is VERY important. Always connect the charger to the battery with the charger powered up at the mains first. This will stop a “Connection Spark”. The battery needs a “Balance Charge” on first charge. Please charge for 12 hours first time.  Always charge your battery in a safe place and never unsupervised.
Our recommended charger for this battery is:  https://electroncycles.com/product/charger-72v-84v-8a-for-large-batteries-suitable-for-72v-sur-ron-talaria/
This Battery will not work with an original standard Talaria Controller
Bike Not Included
